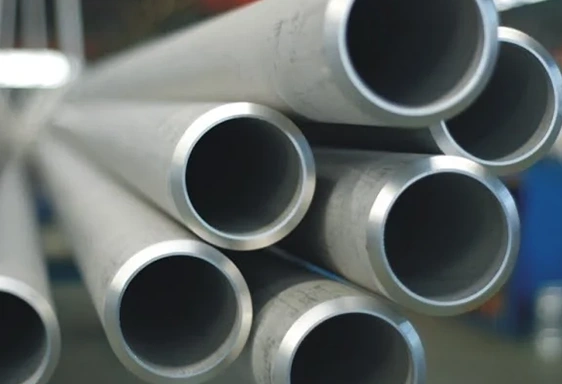

Besiūliai vamzdžiai (storis nuo 8)

Gamybos standartas

EN 10210, EN 10216, EN 10305

Plieno markės

P235TR2, E235+N, S355J2H, P265GH

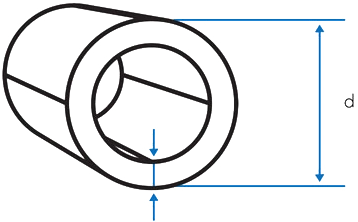

Išorinis diametras, mm	Sienelės storis, mm / teorinis svoris, kg/m
d	t
	8	8.8	10	12.5	14.2	16	20	25	30	36	40	45	50	55	60
38	5.918		6.905
40	6.313		7.398
42.8	6.786		7.99
44.5		7.747	8.508
48.3	7.95		9.45	11.04
50
51	8.483		10.12
54			10.85	12.79
57	9.667		11.59	13.72
60.3	10.32		12.41	14.73	16.14	17.48
63.5	11	11.87	13.19	15.72	17.26	18.74
70	12.23	13.28	14.8	17.72	19.54	21.31	24.66
73
75
76.1	13.43		16.3	19.61	21.68	23.71	27.67
80
82.5	14.7		17.88		23.92	26.24	30.83
83
88.9	15.96		19.46	23.55	26.16	28.76	33.98	39.39
95	17.16		20.96	25.43		31.17	36.99
100
101.6	18.47	20.14	22.59	27.47	30.61	33.77	40.25	47.22
108	19.73	21.53	24.17	29.44		36.3	43.4
110
114.3	20.97		25.72	31.38	35.05	38.79	46.51
121	22.29		27.37	33.45		41.43	49.81
127	23.48		28.85	35.29		43.8	52.77
133	24.66			37.14		46.16
139.7	25.98		31.98	39.21	43.95	48.81	59.04
146
152.4	28.49		35.12		48.39	53.82
159	29.79		36.74	45.16	50.7	56.42
168.3	31.62		39.04	48.03	53.96		73.14
177.8	33.5		41.38	50.95		63.84	77.83		109.34
193.7	36.63		45.3	55.85	62.86	70.11	85.67				151.61
203	38.47	47.6	58.72			90.26		148.26
219.1	41.65		51.56	63.68		80.14	98.2	119.66			176.68
244.5	46.66		57.83	71.51	80.64	90.16	110.72	135.32	158.69	185.1	201.72	221.39	239.8
273	52.28	57.33	64.86	80.3	90.62	101.4	124.78	152.89	179.77	210.4	229.83	253.01	274.96
298.5	57,31	62.87	71.14	88.16	99.55	111.46	137.36	168.61	198.64	233.04	254.98	281.31
323.9	62.32	68.38	77.41	95.99	108.45	121.49	149.88	184.27	217.43	255.59	280.04	309.5	337.72	364.71	390.47
355.6	118.63	75.26	85.22	105.76	119.55	133.99	165.52	203.81	240.88	283.73	311.31	344.67	376.8	407.7	437.37
406.4		86.28	97.75	121.42	137.34	154.04	190.57	235.13	278.46	328.83	361.42	401.05
