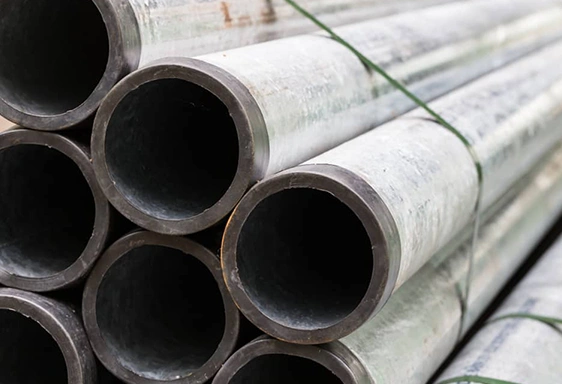

Cinkuoti vamzdžiai vandentiekiui
Gamybos standartas
EN 10255M, EN10217, cinkavimas pagal EN 10240. Išbandyti 50 bar slėgiu. Cinko storis 50 µm.
Plieno markės
S195T, P235TR1
| Išorinis diametras, mm | Sienelės storis, mm / teorinis svoris, kg/m | |||||||
| d | t | |||||||
| 2,3 | 2,6 | 2,9 | 3,2 | 3.6 | 4 | 4.5 | 5 | |
| DN10 (17.2) | 0.845 | 0.936 | 1.023 | |||||
| DN15 (21.3) | 1.078 | 1.199 | 1.316 | 1.428 | ||||
| DN20 (26.9) | 1.395 | 1.558 | 1.716 | 1.87 | 2.068 | |||
| DN25 (33.7) | 1.781 | 1.994 | 2.203 | 2.41 | 2.67 | 2.93 | ||
| DN32 (42.4) | 2.552 | 2.825 | 3.093 | 3.445 | 3.788 | 4.206 | ||
| DN40 (48.3) | 2.93 | 3.247 | 3.56 | 3.968 | 4.37 | 4.861 | 5.339 | |
| DN50 (60.3) | 3.7 | 4.105 | 4.506 | 5.034 | 5.553 | 6.192 | 6.818 | |
| DN70 (76.1) | 4.713 | 5.235 | 5.753 | 6.436 | 7.112 | 7.945 | 8.766 | |
| DN80 (88.9) | 6.15 | 6.763 | 7.573 | 8.375 | 9.366 | 10.345 | ||
| DN100 (114.3) | 7.967 | 8.767 | 9.828 | 10.88 | 12.2 | 13.477 | ||
| DN125 (133.0) | 10.243 | 11.488 | 12.724 | 14.259 | 15.782 | |||
| DN125 (139.7) | 10.77 | 12.08 | 13.385 | 15.003 | 16.609 | |||
| DN150 (159.0) | 13.796 | 15.289 | 17.145 | 18.988 | ||||
| DN150 (168.3) | 14.621 | 16.21 | 18.18 | 20.135 | ||||
