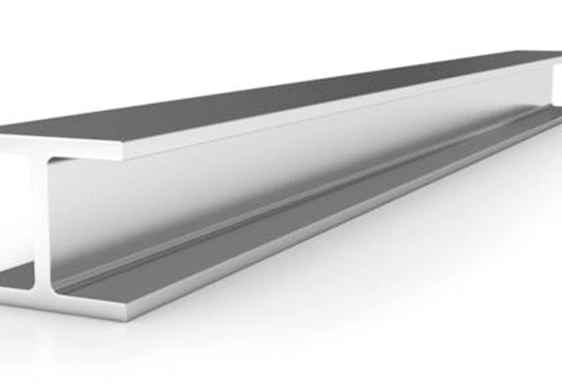

Dvitėjiniai profiliai HEM
Gamybos standartas
EN 10024
Plieno markės
S235JR, S275JR, S355J2

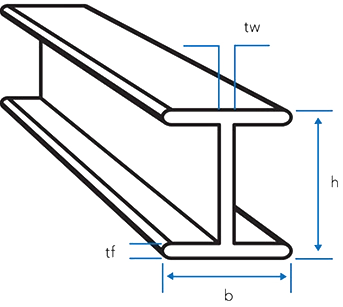

| Profilis | Teorinis svoris, kg/m | Matmenys, mm | |||
| h | b | tw | tf | ||
| HEM 100 | 41,8 | 120 | 106 | 12,0 | 20,0 |
| HEM 120 | 52,1 | 140 | 126 | 12,5 | 21,0 |
| HEM 140 | 63,2 | 160 | 146 | 13,0 | 22,0 |
| HEM 160 | 76,2 | 180 | 166 | 14,0 | 23,0 |
| HEM 180 | 88,9 | 200 | 186 | 14,5 | 24,0 |
| HEM 200 | 103,0 | 220 | 206 | 15,0 | 25,0 |
| HEM 220 | 117,0 | 240 | 226 | 15,5 | 26,0 |
| HEM 240 | 157,0 | 270 | 248 | 18,0 | 32,0 |
| HEM 260 | 172,0 | 290 | 268 | 18,0 | 32,5 |
| HEM 280 | 189,0 | 310 | 288 | 18,5 | 33,0 |
| HEM 300 | 238,0 | 340 | 310 | 21,0 | 39,0 |
