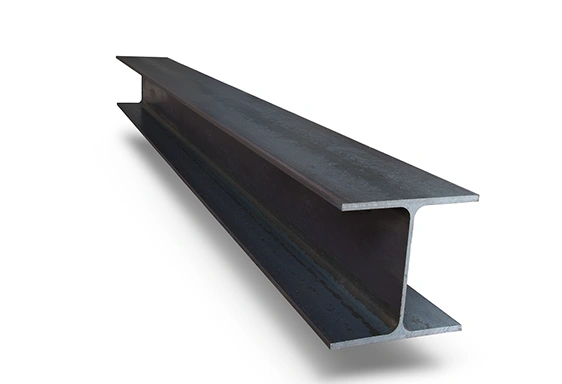

Dvitėjiniai profiliai HEA
Gamybos standartas
EN 10034
Plieno markės
S235JR, S275JR, S355J2

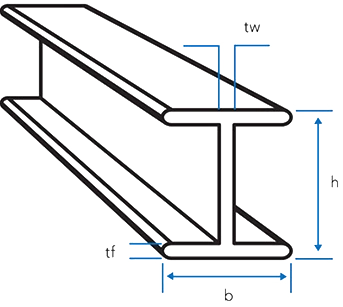

| Profilis | Teorinis svoris, kg/m | Matmenys, mm | |||
| h | b | tw | tf | ||
| HEA 100 | 16.7 | 96 | 100 | 5,0 | 8,0 |
| HEA 120 | 19.9 | 114 | 120 | 5,0 | 8,0 |
| HEA 140 | 24.7 | 133 | 140 | 5.5 | 8.5 |
| HEA 160 | 30.4 | 152 | 160 | 6,0 | 9,0 |
| HEA 180 | 35.5 | 171 | 180 | 6,0 | 9.5 |
| HEA 200 | 42.3 | 190 | 200 | 6.5 | 10,0 |
| HEA 220 | 50.5 | 210 | 220 | 7,0 | 11,0 |
| HEA 240 | 60.3 | 230 | 240 | 7.5 | 12,0 |
| HEA 260 | 68.2 | 250 | 260 | 7.5 | 12.5 |
| HEA 280 | 76.4 | 270 | 280 | 8,0 | 13,0 |
| HEA 300 | 88 | 290 | 300 | 8.5 | 14,0 |
| HEA 320 | 97.6 | 310 | 300 | 9,0 | 15.5 |
| HEA 340 | 105 | 330 | 300 | 9.5 | 16.5 |
| HEA 360 | 112 | 350 | 300 | 10,0 | 17.5 |
| HEA 400 | 125 | 390 | 300 | 11,0 | 19,0 |
| HEA 450 | 140 | 440 | 300 | 11.5 | 21,0 |
| HEA 500 | 155 | 490 | 300 | 12,0 | 23,0 |
| HEA 550 | 166 | 540 | 300 | 12.5 | 24,0 |
| HEA 600 | 178 | 590 | 300 | 13,0 | 25,0 |
| HEA 650 | 190 | 640 | 300 | 13.5 | 26,0 |
| HEA 700 | 204 | 690 | 300 | 14.5 | 27,0 |
| HEA 800 | 224 | 790 | 300 | 15,0 | 28,0 |
| HEA 900 | 252 | 890 | 300 | 16,0 | 30,0 |
| HEA 1000 | 272 | 990 | 300 | 16.5 | 31,0 |
