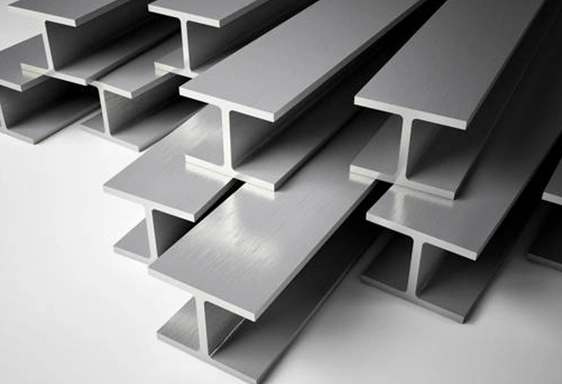

Dvitėjiniai profiliai HEB
Gamybos standartas
EN 10034
Plieno markės
S235, S275JR, S355J2

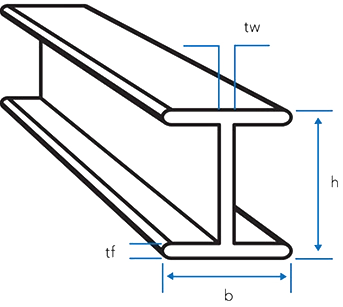

| Profilis | Teorinis svoris, kg/m | Matmenys, mm | |||
| h | b | tw | tf | ||
| HEB 100 | 20.4 | 100 | 100 | 6,0 | 10,0 |
| HEB 120 | 26.7 | 120 | 120 | 6.5 | 11,0 |
| HEB 140 | 33.7 | 140 | 140 | 7,0 | 12,0 |
| HEB 160 | 42.6 | 160 | 160 | 8,0 | 13,0 |
| HEB 180 | 51.2 | 180 | 180 | 8.5 | 14,0 |
| HEB 200 | 61.3 | 200 | 200 | 9,0 | 15,0 |
| HEB 220 | 71.5 | 220 | 220 | 9.5 | 16,0 |
| HEB 240 | 83.2 | 240 | 240 | 10,0 | 17,0 |
| HEB 260 | 93,0 | 260 | 260 | 10,0 | 17.5 |
| HEB 280 | 103,0 | 280 | 280 | 10.5 | 18,0 |
| HEB 300 | 117,0 | 300 | 300 | 11,0 | 19,0 |
| HEB 320 | 127,0 | 320 | 300 | 11.5 | 20.5 |
| HEB 340 | 134,0 | 340 | 300 | 12,0 | 21.5 |
| HEB 360 | 142,0 | 360 | 300 | 12.5 | 22.5 |
| HEB 400 | 155,0 | 400 | 300 | 13.5 | 24,0 |
| HEB 450 | 171,0 | 450 | 300 | 14,0 | 26,0 |
| HEB 500 | 187,0 | 500 | 300 | 14.5 | 28,0 |
| HEB 550 | 199,0 | 550 | 300 | 15,0 | 29,0 |
| HEB 600 | 212,0 | 600 | 300 | 15.5 | 30,0 |
| HEB 650 | 225,0 | 650 | 300 | 16,0 | 31,0 |
| HEB 700 | 241,0 | 700 | 300 | 17,0 | 32,0 |
| HEB 800 | 262,0 | 800 | 300 | 17.5 | 33,0 |
| HEB 900 | 291,0 | 900 | 300 | 18.5 | 35,0 |
| HEB 1000 | 314,0 | 1000 | 300 | 19,0 | 36,0 |
