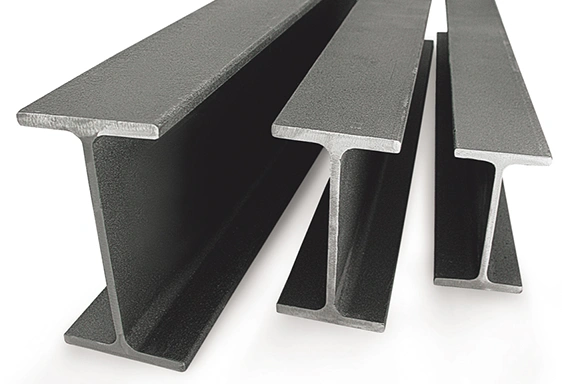

Dvitėjiniai profiliai IPE
Gamybos standartas
EN 10034
Plieno markės
S235JR, S275JR, S355J2

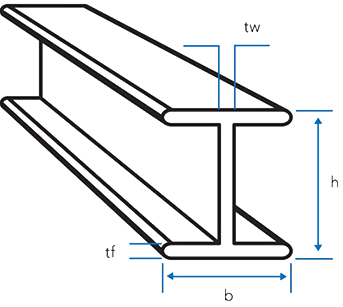

| Profilis | Teorinis svoris, kg/m | Matmenys, mm | |||
| h | b | tw | tf | ||
| IPE 80 | 6 | 80 | 46 | 3.8 | 5.2 |
| IPE 100 | 8.1 | 100 | 55 | 4.1 | 5.7 |
| IPE 120 | 10.4 | 120 | 64 | 4.4 | 6.3 |
| IPE 140 | 12.9 | 140 | 73 | 4.7 | 6.9 |
| IPE 160 | 15.8 | 160 | 82 | 5 | 7.4 |
| IPE 180 | 18.8 | 180 | 91 | 5.3 | 8 |
| IPE 200 | 22.4 | 200 | 100 | 5.6 | 8.5 |
| IPE 220 | 26.2 | 220 | 110 | 5.9 | 9.2 |
| IPE 240 | 30.7 | 240 | 120 | 6.2 | 9.8 |
| IPE 270 | 36.1 | 270 | 135 | 6.6 | 10.2 |
| IPE 300 | 42.2 | 300 | 150 | 7.1 | 10.7 |
| IPE 330 | 49 | 330 | 160 | 7.5 | 11.5 |
| IPE 360 | 57.1 | 360 | 170 | 8 | 12.7 |
| IPE 400 | 66.3 | 400 | 180 | 8.6 | 13.5 |
| IPE 450 | 77.6 | 450 | 190 | 9.4 | 14.6 |
| IPE 500 | 90.7 | 500 | 200 | 10.2 | 16 |
| IPE 550 | 106 | 550 | 210 | 11.1 | 17.2 |
| IPE 600 | 122 | 600 | 220 | 12 | 19 |
