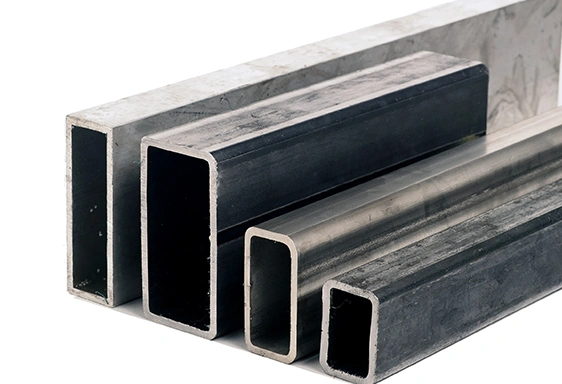

Kalibruoti kvadratiniai ir stačiakampiai vamzdžiai (ėsdinti)

Gamybos standartas

EN 10305-5

Plieno markės

DC01, E190, E195, E220

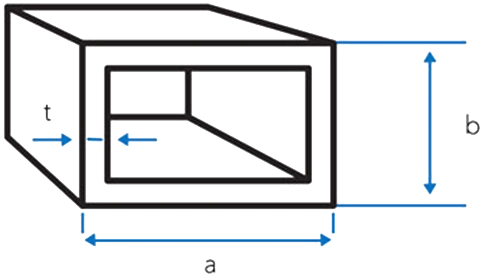

Matmenys, mm	Sienelės storis, mm
a x b	t
	1	1.5	2	2.5	3
10 x 10	0.269	0.4
12 x 12	0.344	0.491
14 x 14	0.41	0.585
15 x 15	0.438	0.632	0.81
16 x 16	0.47	0.68	0.88
18 x 18		0.77	1.005
20 x 10	0.438	0.632	0.81
20 x 15		0.75	0.967
20 x 20	0.595	0.868	1.124
25 x 10		0.75	0.967
25 x 15		0.868	1.124
25 x 20		0.985	1.281
25 x 25		1.103	1.438
30 x 10		0.868	1.124
30 x 15		0.985	1.281
30 x 20		1.103	1.438
30 x 25		1.221	1.595
30 x 30		1.339	1.752	2.148
35 x 15		1.103	1.438
35 x 20		1.221	1.595
35 x 25		1.339	1.752
35 x 35		1.574	2.066
40 x 10		1.103	1.438
40 x 15		1.221	1.595
40 x 20		1.339	1.752
40 x 25		1.456	1.909
40 x 30		1.574	2.066
40 x 40		1.81	2.38		3,334
45 x 20		1.456	1.909
45 x 25		1.574	2.066
45 x 45		2.045	2.694
50 x 10		1.339	1.752
50 x 15		1.456	1.909
50 x 20		1.574	2.066	2.541
50 x 25		1.692	2.223
50 x 30		1.81	2.38
50 x 40		2.045	2.694
50 x 50		2.281	3.008
60 x 10		1.574	2.066
60 x 20		1.81	2.38
60 x 30		2.045	2.694
60 x 40		2.281	3.008
60 x 60		2.752	3.636
70 x 20		2.045	2.694
80 x 20		2.281	3.008
80 x 30		2.516	3.322
80 x 40		2.752	3.636
80 x 50			3.88
100 x 20			3,636
