Konstrukciniai vamzdžiai (d nuo 17.2)

Gamybos standartas

EN 10219

Plieno markės

S235JRH, S355J2H

Išorinis diametras, mm	Sienelės storis, mm / teorinis svoris, kg/m

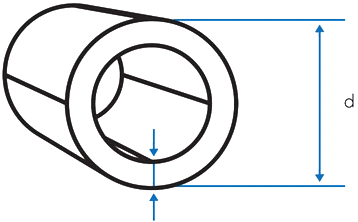

d	t
	1.5	2	2.5	2.6	2.9	3	3.2	3.6	4	4.5	5	6	8	10
17.2		0.75
18	0.61	0.79
19	0.647	0.838
20	0.684	0.888
21.3	0.732	0.952
22	0.758	0.986	1.202
25	0.869	1.134	1.387			1.628			2.071
26.9	0.94	1.228		1.558		1768			2.259
28	0.98	1.282	1.572			1.85
30	1.054	1.381	1.695	1.76		1.997			2.56
32	1.128	1.48	1.82			2.145	2.273
33.7	1.191	1.563	1.923	1.994	2.203	2.271	2.407		2.93
35	1.239	1.628	2.004			2.367	2.51		3.06
38	1.35	1.776	2.189			2.589	2.746	3.05	3.354
40	1.424	1.874	2.312			2.737	2.9		3.551		4.32
42.4	1.513	1.993	2.46	2.552	2.825	2.915	3.093	3.445	3.788		4.611	5.39
43	1.535	2.022	2.5			2.96
45	1.609	2.121	2.62			3.107			4.04
48.3	1.731	2.284	2.824	2.93	3.247	3.351	3.559	3.968	4.37		5.339
50	1.794	2.367	2.928			3.477			4.537		5.55
51	1.831	2.417	2.99	3.103		3.551	3.772	4.21	4.636
55		2.614				3.847			5.031
57	2.05	2.713	3.36		3.869	3.995	4.245	4.741	5.228		6.412
60.3	2.175	2.875	3.563	3.699	4.105	4.239	4.506	5.034	5.553	6.19	6.818	8.034	10.318
63.5		3.033	3.761			4.476	4.72	5.27		6.49	7.15	8.43
70	2.53	3.354	4.161		4.799	4.957	5.27	5.89	6.51	7.27	8.015	9.47
76.1	2.759	3.655	4.537	4.713	5.235	5.408	5.753	6.436	7.112	7.95	8.767	10.372	13.43	16,3
80	2.9	3.847	4.78			5.696			7.497		9.25	10.95	14.2
83	3.01	3.99	4.96			5.92			7.79		9.62	11.39	14.8
88.9	3.233	4.286	5.33	5.533	6.15	6.355	6.763	7.573	8.375	9.366	10.345	12.266	15.96	19.456
