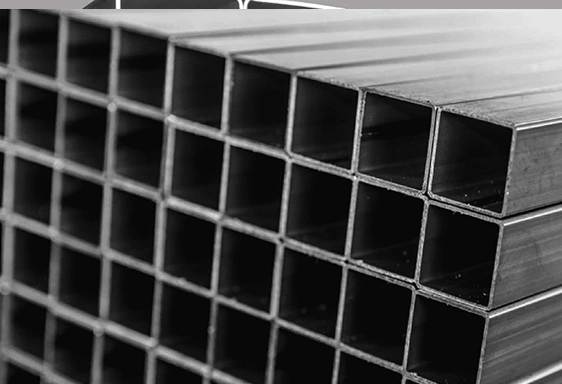

Kvadratiniai ir stačiakampiai vamzdžiai (plotis nuo 100)

Gamybos standartas

EN10219

Plieno markės

S235JRH, S355J2H

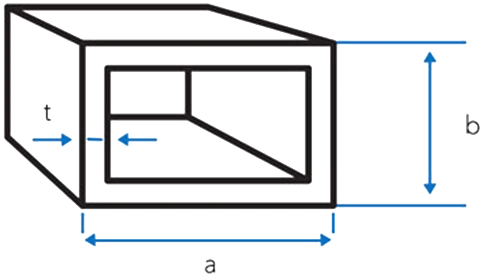

Matmenys, mm	Sienelės storis, mm / teorinis svoris, kg/m
a x b	t
	1.5	2	2.5	3	4	5	6	8	10	12	12.5
100 x 20	2.71	3.56		5.19
100 x 30	2.95	3.88	4.78	5.66	7.34	8.91
100 x 40	3.18	4.19	5.17	6.13	7.97	9.7	11.3
100 x 50	3.42	4.5	5.56	6.6	8.59	10.5	12.3	15.1	20.4
100 x 60		4.82	5.96	7.07	9.22	11.3	13.2	16.4
100 x 80			6.74	8.01	10.5	12.8	15.1	18.9	22.4
100 x 100		6.1	7.53	8.96	11.7	14.4	17	21.4	25.6	28.3	29.1
110 x 110				9.9	13	16	18.9	23.9	28.7		38.27
120 x 30		4.5		6.6	8.59
120 x 40	3.65	4.82	5.96	7.07	9.22	11.3	13.2
120 x 50		5.13	6.35	7.54	9.85	12.1	14.5
120 x 60		5.45	6.74	8.01	10.5	12.8	15.1	18.9	22.4
120 x 80			7.53	8.96	11.7	14.4	17	21.4	25.6	28.3	29.1
120 x 100				9.9	13	16	18.9	23.9	28.7
120 x 120				10.8	14.2	17.5	20.7	26.4	31.8	35.8	36.9
130 x 130					15.5	19.1	22.6	28.9
140 x 40		5.45	6.74	8.01	10.5	12.8	15.1
140 x 50				8.49	11.13	13.63
140 x 60		6.07		8.96	11.7	14.4	17	21.4
140 x 70				9.43	12.4	15.2	17.9	22.6	27.1
140 x 80				9.9	13	16	18.9	23.9	28.7
140 x 100				10.8	14.2	17.5	20.7	26.4	31.8
140 x 140				12.7	16.8	20.7	24.5	31.4	38.1		44.8
150 x 40		5.84		8.49	11.13	16.63
150 x 50		6.07		8.96	11.7	14.4	17	21.4
150 x 60					11.57
150 x 75				10.32		16.88	19.3
150 x 100				11.3	14.9	18.3	21.7	27.7	33.4		40.92
150 x 150				13.7	18	22.3	26.4	33.9	41.3	47.1	48.7
160 x 60				9.9	13	16	18.9
160 x 80				10.8	14.2	17.5	20.7	26.4	31.8		36.9
160 x 90					14.9	18.3	21.7	27.7	36.11
160 x 100					15.5	19.1	22.6	28.9	35
160 x 120					16.8	20.7	24.5	31.4	38.1
160 x 160					19.3	23.8	28.3	36.5	44.4	50.9	51.82
90 x 70		4.82	5.96	7.07	9.22	11.3
90 x 90		5.45		8.01	10.5	12.8	15.1	18.9
