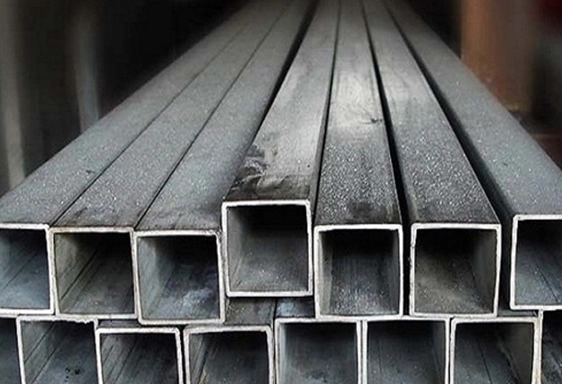

Kvadratiniai ir stačiakampiai vamzdžiai (plotis nuo 180)

Gamybos standartas

EN10219

Plieno markės

S235JRH, S355J2H

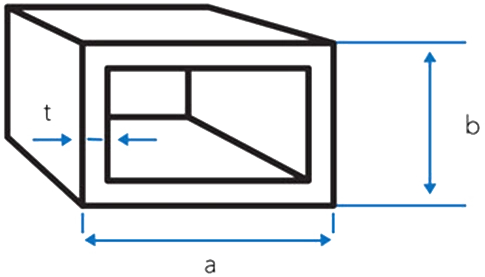

Matmenys, mm	Sienelės storis, mm / teorinis svoris, kg/m
a x b	t
	3	4	5	6	8	10	12	12.5	16	20
180 x 60	10.8	14.2	17.5	20.7
180 x 80		15.5	19.1	22.6	28.9	35
180 x 100		16.8	20.7	24.5	31.4	38.1
180 x 120		18	22.3	26.4	33.9	41.3
180 x 180			27	32.1	41.5	50.7	58.5	60.5	73.77
200 x 40		14.57
200 x 80	12.7	16.8	20.7	24.5	31.4	38.1
200 x 100	13.7	18	22.3	26.4	33.9	41.3	47.1	48.7	67.32
200 x 120		19.3	23.8	28.3	36.5	44.4	50.9	52.6
200 x 150		21.2	26.2	31.1	40.2	49.1
200 x 160			27	32.1	41.5
200 x 200	18.56	24.62	30.1	35.8	46.5	57	66	68.3	83.82
220 x 120		20.5	25.4	30.2	39	47.5
220 x 220		26.8	33.2	39.6	51.5	63.2	73.5	76.2
250 x 100	16	21.2	26.2	31.1	40.2	49.1		58.5
250 x 150			30.1	35.8	46.5	57		68.3	83.82
250 x 250			38	45.2	59.1	72.7	84.8	88	109
260 x 140			30.1	35.8	46.5	57
260 x 180			33.2	39.6	51.5	63.2		76.2	102.49
300 x 100		24.3	30.1	35.8	46.5	57		68.3
300 x 150		27.4	34	40.5	52.8	64.8		78.1
300 x 200			38	45.2	59.1	72.7		88	109
300 x 300				54.7	71.6	88.4	104	108	134
350 x 150				45.2	59.1	72.7
350 x 250				54.7	71.6	88.4
350 x 350					84.2	104	123	127	159
400 x 150					65.3	80.5		97.8
400 x 200				54.7	71.6	88.4		108	134
400 x 300				64.1	84.2	104		127
400 x 400					96.8	120	141	147	184	225
450 x 250				64.1	84.2	104		127
500 x 200				64.1	84.2	104		127	159
500 x 300					96.8	120		147	184	225
500 x 500						151		186	235	288
600 x 400						151		186	235	288
