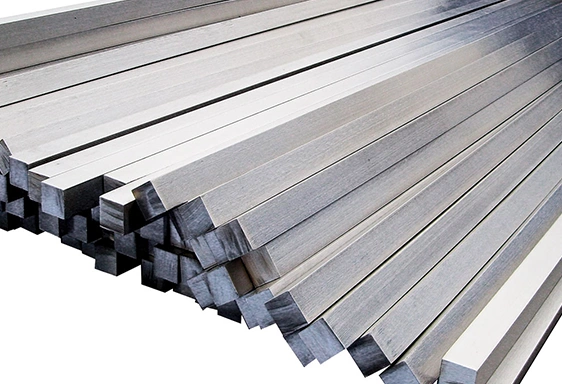

Kvadratinis kalibruotas plienas

Gamybos standartas

EN 10277

Plieno markės

S235JR+C, S355J2+C, C45E+C

Matmenys, mm	Plieno markė, mm	Teorinis svoris, kg/m

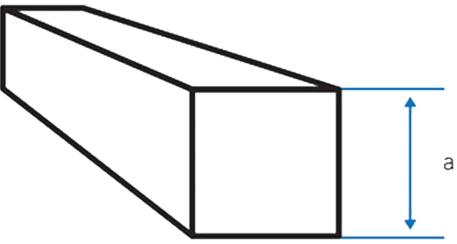

a x a
4 x 4	h11 S235JR+ C	0.126
5 x 5	h11 S235JR+ C	0.196
6 x 6	h11 S235JR+ C	0.283
7 x 7	h11 S235JR+ C	0.385
8 x 8	h11 S235JR+ C	0.502
10 x 10	h11 S235JR+ C	0.785
12 x 12	h11 S235JR+ C	1,13
13 x 13	h11 S235JR+ C	1,33
14 x 14		1,54
15 x 15	h11 S235JR+ C	1,77
16 x 16	h11 S235JR+ C	2,01
18 x 18		2,55
20 x 20	h11 S235JR+ C	3,14
22 x 22		3,80
25 x 25	h11 S235JR+ C	4,91
30 x 30	h11 S235JR+ C	7,07
35 x 35	h11 S235JR+ C	9,62
40 x 40	h11 S235JR+ C	12,56
45 x 45		15,89
50 x 50	h11 C45E+ C / h11 S235JR+ C	19,62
55 x 55		23,74
60 x 60	h11 C45E+C	28,26
65 x 65		33,17
70 x 70		38,46
75 x 75		44,16
80 x 80		50,24
85 x 85		56,72
90 x 90		63,58
95 x 95		70,85
100 x 100		78,50
