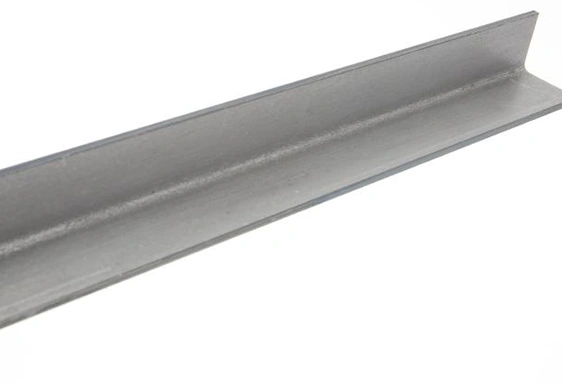

Šaltai lenkti kampuočiai

Gamybos standartas

EN 10162

Plieno markės

S235JR

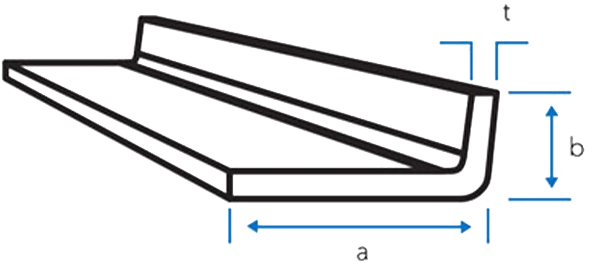

Matmenys, mm	Sienelės storis, mm
a x b	t
	1.5	2	3	4	5	6
10 x 10	200	267
15 x 15	333	424
20 x 20	440	570	820
25 x 15		581
25 x 25	550	720	1,040
30 x 15		659
30 x 20	550	720	1,060
30 x 30	670	880	1,270	1,630
35 x 35	790	1,040	1,510	1,950
40 x 20	670	890	1,300	1,660
40 x 25		960	1,390	1,830
40 x 30		1,050	1,510	1,950
40 x 40	910	1,190	1,730	2,260	2,750
45 x 45	1,030	1,350	1,970	2,590	3,100
50 x 25	850	1,130	1,620	2,150
50 x 30	910	1,20	1,730	2,310
50 x 40	1,030	1,370	2,000	2,570	3,140
50 x 50	1,140	1,510	2,230	2,910	3,510
52 x 52 *		1,400
60 x 30		1,360	1,960	2,620
60 x 40	1,140	1,520	2,220	2,890	3,530
60 x 60	1,380	1,820	2,680	3,510	4,290
70 x 70		2,140	3,150	4,140	5,080	6,000
75 x 75				4,430	5,470	6,470
80 x 30			2,450
80 x 40			2,710	3,520	4,320
80 x 50			2,940	3,830	4,710
80 x 80		2,390	3,630	4,780	5,900	6,990
90 x 90			4,100	5,410	6,690	7,940
100 x 50			3,390	4,420	5,490	6,470
100 x 100			4,570	6,000	7,420	8,820
120 x 50				5,180		6,990
150 x 50		3,080
150 x 100					9,150
180 x 60						10,76
