UPN profiliai
Gamybos standartas
EN 10279, DIN 1026-1
Plieno markės
S235JR, S275JR, S355J2

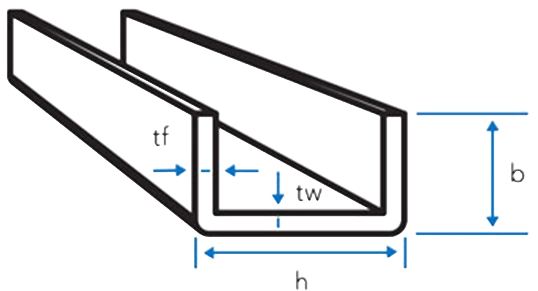

| Profilis | Teorinis svoris, kg/m | Matmenys, mm | |||
| h | b | tw | tf | ||
| UPN 40 | 4,87 | 40 | 35 | 5,0 | |
| UPN 50 | 5,59 | 50 | 38 | 5,0 | 7,0 |
| UPN 65 | 7,09 | 65 | 42 | 5,5 | 7,5 |
| UPN 80 | 8,64 | 80 | 45 | 6,0 | 8,0 |
| UPN 100 | 10,6 | 100 | 50 | 6,0 | 8,5 |
| UPN 120 | 13,4 | 120 | 55 | 7,0 | 9,0 |
| UPN 140 | 16,0 | 140 | 60 | 7,0 | 10,0 |
| UPN 160 | 18,9 | 160 | 65 | 7,5 | 10,5 |
| UPN 180 | 22,0 | 180 | 70 | 8,0 | 11,0 |
| UPN 200 | 25,3 | 200 | 75 | 8,5 | 11,5 |
| UPN 220 | 29,4 | 220 | 80 | 9,0 | 12,5 |
| UPN 240 | 33,2 | 240 | 85 | 9,5 | 13,0 |
| UPN 260 | 37,9 | 260 | 90 | 10,0 | 14,0 |
| UPN 280 | 41,8 | 280 | 95 | 10,0 | 15,0 |
| UPN 300 | 46,2 | 300 | 100 | 10,0 | 16,0 |
| UPN 320 | 59,5 | 320 | 100 | 14,0 | 17,5 |
| UPN 350 | 60,6 | 350 | 100 | 14,0 | 16,0 |
| UPN 380 | 63,1 | 380 | 102 | 13,5 | 16,0 |
| UPN 400 | 71,8 | 400 | 110 | 14,0 | 18,0 |
